GC-12 50Hz 60Hz 3 Phase AC Electric Contactor 25A 220V 40A

Brand Name : YOKG

Model Number : GC-9～22

Certification : CE,TUV,CB

Place of Origin : China

MOQ : 100PCS

Price : Negotiable

Payment Terms : L/C, D/P, T/T

Supply Ability : 100000pcs per Month

Delivery Time : 15days or Depends on ordering QTYS

Packaging Details : Each unit be packed in one individual inner box

Rated heating current : 25A,40A

Poles : 3

Auxiliary contact : 1NC+1NO

Color : White orange

Frequency : 50/60 Hz

Type : AC Contactor

Operation frequency of electrical life : 1200

Electrical life : 1000000

Standard : IEC60947-4

Main Circuit Rating Voltage : 200-690V

Contact Now

GC-12 50 60Hz 3Ph AC220V Electrical Contactor Megnetic AC Contactor

General:

GC series AC contactor is suitable for using in the circuits up to the rated voltage 660V AC 50/60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling device, etc. It becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal overload relay, it is combined into the electromagnetic starter.

Main parameters and Technical Performance:

Type GC-9 GC-12 GC-18 GC-22
Rated heating current (A) 25 25 40 40
Rated insulation voltage (V) 690
Rated impact withstand voltage (KV) 6
Rated making capacity 10le
Rated breaking capacity 8le
Poles 3
Auxiliary contact 1NC+1NO
Short-time withstand current(A) 10S 72 96 144 196
IEC-60947 AC1 Load 25 25 40 40
AC3
Load
power		 200～240V 2.5KW 3.5KW 4.5KW 5.5KW
380～440V 4KW 5.5KW 7.5KW 11KW
500～550V 4KW 7.5KW 7.5KW 15KW
690V 4KW 7.5KW 7.5KW 15KW
AC3
Load
current		 200～240V 11A 13A 18A 22A
380～440V 9A 12A 18A 22A
500～550V 7A 12A 13A 18A
690V 5A 9A 9A 32A
UL508 Continuous current 20A 25A 30A 32A
single-phase
machine		 115V 0.5HP 0.5HP 1HP 2HP
230V 1HP 2HP 3HP 3HP
Three-phase
machine		 200V 2HP 3HP 5HP 7.5HP
230V 2HP 3HP 5HP 7.5HP
460V 5HP 7.5HP 10HP 10HP
575V 7.5HP 10HP 15HP 15HP
Operation frequency (times/h) Electrical life 1200
Mechanical life 3600
AC-3 Electrical life (10000/times) 100 100 100 100
Mechanical life (10000/times) 1000 1000 1000 1000

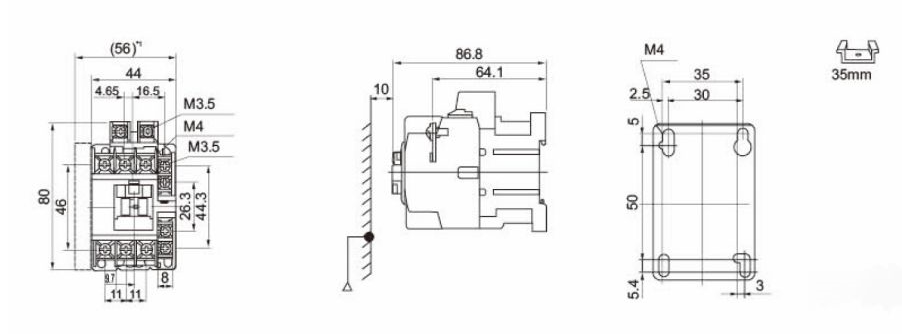

Installation dimension:

GC-12 50Hz 60Hz 3 Phase AC Electric Contactor 25A 220V 40A

Package and shipment:

GC-12 50Hz 60Hz 3 Phase AC Electric Contactor 25A 220V 40A

GC-12 50Hz 60Hz 3 Phase AC Electric Contactor 25A 220V 40A

Why Choose Us:

--------------------------------------------------------------------

a. Reply your inquire in 24 working hour.
b. Technical and professional guidance.
c. Best quality and best price.

We maintain excellent products and strive for 100% customer satisfaction. A good feedback is very important, we welcome for your kind suggestion or feedback on our goods and service.
